How To Diagnose A Failing Headlight: Common Headlight Problems
Headlight technology on today’s vehicles has become increasingly complex. Traditional halogen bulbs have given way to sophisticated high-intensity discharge (HID) and light-emitting diode (LED) headlight modules and controllers. Not only are these headlight parts more costly to replace, they are often more challenging to diagnose.
Often times professional diagnosis or repair is the only option for LED headlamps since some do not have serviceable bulbs and may require replacing the entire headlight assembly. If you need to diagnose your headlight problems, you'll want to examine the:
- Bulb or Bulb Connector
- Fuse
- Headlight Relay
- Headlight Wiring
- Headlight Switch
Diagnosing a dim or inoperative Nissan headlight involves several steps to identify the root cause of the issue. A digital multimeter is recommended for testing the headlight circuits. A single headlight failure is often isolated to a bulb or a fuse. If both headlights are inoperative, the cause may lie with the electrical wiring or the headlight switch. Here are some parts to check in order to troubleshoot and diagnose the problem:

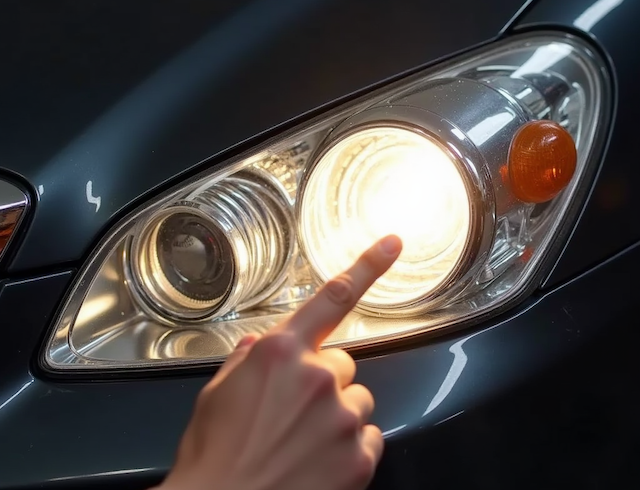

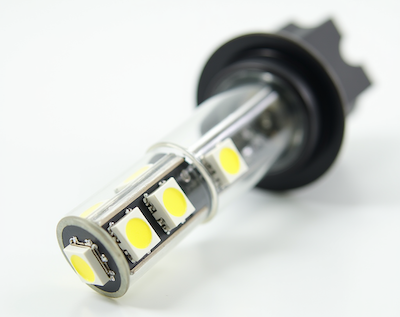

Check The Bulb And Connector
If your vehicle is equipped with traditional halogen headlights, remove the headlight bulb and inspect it for any signs of damage or a blown filament. You can replace the bulb if there is obvious damage - or - if you're uncertain, swap the bulb from the other working headlight to see if the problem persists.
If your vehicle is equipped with HID headlights, the headlight usually has two separate parts. There's a bulb unit and a ballast that produces higher operating voltage. The ballast can be mounted on the bulb or in a separate jumper harness.
Generally, a blown bulb is often the simplest explanation for a non-functioning headlight. However, it's also important to inspect the headlight bulb pins and the connector for corrosion or loose terminals. If there is obvious damage, replace both the headlight connector and bulb.

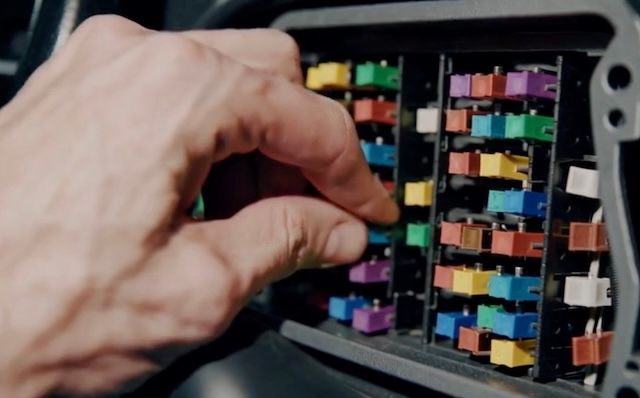

Check The Fuse
Check your owner’s manual for the location of the fuse box and identify the headlight fuse. Remove and inspect the fuse of the affected headlight. If the fuse is blown, replace it with the same-amperage fuse and test the headlight's operation. If the fuse blows again, check for a short circuit in the wiring.
If the fuse is intact, the wiring may have an open circuit or a faulty relay.
Check The Headlight Relay
Most vehicles use headlight relays. Check your owner’s manual for a diagram that will locate and identify the headlight relay.
You can then swap the headlight relay with the other headlight or an identical relay from the fuse box. If the headlight is still inoperative, there may be an issue with the wiring.

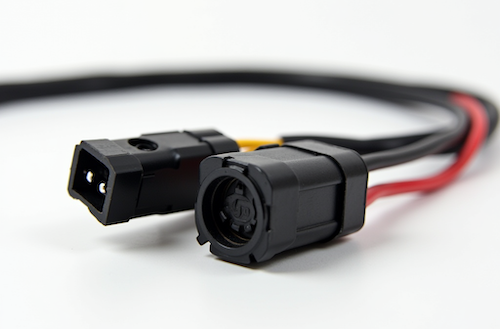

Inspect The Headlight Wiring
If you dig a bit through your manual you'll find the applicable electrical schematics for your vehicle. Using a multimeter, test the headlight circuits back to the fuse box starting from the headlight connector.
Also check the power supply circuit to the headlight. When the headlight switch is turned on, you should get a voltage reading. Again, check your manual for the correct voltage specifications. If there is low or no voltage, look for damage, corrosion, or a loose ground connection.
Check The Headlight Switch
If the bulbs, fuses, and wiring are all in good condition, the next issue to check is the headlight switch. Test the switch using a multimeter to ensure it sends power to the headlights. Check your multimeter readings against the specs of the headlight switch listed in your owner's manual.
Seek A Professional Diagnosis
Still no luck? Remember that a failing headlight can be a safety hazard to you and other motorists - so you can't just let it be. Consulting a professional automotive technician is the way to go. A more complex electrical issue could be at hand that requires more advanced diagnostic tools. If you need a new headlight assembly or headlight bulb, don’t pay the full retail price at a dealer. Nissan Part Plus has the correct OEM replacement part for your Nissan, at the best price.
